Dyson DC50 Vacuum Parts

Dyson DC50 Vacuum Parts

Dyson DC50 Parts

It’s a sad fact of life that accidents happen whether your vacuum is new or old. If you are going through a rocky patch in your relationship with your Dyson DC50 Animal Vacuum, don’t the ties that bind, just order genuine Dyson replacement parts from VacuumDirect.com and you will be back in love.
Dyson DC50 Cyclone & Bin Assembly Parts Diagram Dyson DC50 Wand & Hose Parts Diagram Dyson DC50 Cleaner Head Parts Diagram
Dyson DC50 Cyclone & Bin Assembly Parts Diagram Dyson DC50 Lower Duct Assembly Parts Diagram Dyson DC50 Upper Duct Assembly Parts Diagram Dyson DC50 Wand & Hose Parts Diagram Dyson DC50 Cleaner Head Parts Diagram


Dyson DC50 Cyclone & Bin Parts Diagram

The Cyclonic assembly is one of the most important parts of a Dyson vacuum, which is why this Dyson DC50 cyclone & bin assembly parts diagram is so important to helping you find the parts you need. Browse below to find the genuine Dyson parts you need for your DC50 vacuum. Some products may NOT be in stock on our website but may be available if you call 1-866-927-4327.



Click Here to View Larger Image

Dyson DC50 Cyclone Parts Diagram

Click Here to View Larger Image

(Click the Part Name Below to be taken Directly to the Part Detail Page)
A. Cyclone Assembly 965073-01, 965073-02
B. Bin 965070-01
C. Cyclone Handle 965074-01
D. Pre-Filter 965081-01










Dyson DC50 Lower Duct Assembly Parts Diagram

Use this Dyson DC50 lower duct assembly schematic to locate the Dyson parts you need for your Dyson DC50 upright vacuum cleaner. Some products may NOT be in stock on our website but may be available if you call 1-866-927-4327.



Click Here to View Larger Image

Dyson DC50 Lowr Duct Assembly

Click Here to View Larger Image

(Click the Part Name Below to be taken Directly to the Part Detail Page)
A. Screw 965087-01
B. Screw 965087-01
C. Motor Bucket Cover Overmould 965100-01
D. Motor 965099-02
E. Motor Bearing Mount 965085-02
F. Screw 910702-28
G. Yoke 964713-01
H. Screw 910702-28
I. Internal Hose (NLA)
J. Motor Bucket Service Assembly (NLA)
K. Upright Lock 965148-01
L. Upright Lock Cover 965105-01
M. Screw 910702-29
N. Interface Plate 965147-01
O. Screw 910703-03
P. Post Filter 965080-01
Q. Ball Shell, Filter Side 964703-01
R. Glamour Cap 921348-01
S. Motor Bucket Wiring 965101-02
T. Screw 910703-24
U. Ball Shell, Duct Side 925769-01
V. Screw 910703-01
W. Yoke Upper 965106-01
X. Screw 910703-03,
Y. Printed Circuit Board (PCB) Cover 966532-01
Z. Printed Circuit Board (PCB) 965086-02,
AA. Screw 965150-01
BB. Duct Cyclone Seal 965070-01
CC. Inlet Clean Duct Assembly (NLA)
DD. Screw 910703-01
EE. Screw
FF. Ductside & Filterstand Arm 964712-01
GG. Stand 965103-01
HH. Stabiliser Wheel 965102-01
II. COV Hose 965093-01
JJ. Internal Hose Cuff Seal (NLA)
KK. Spring 965090-01







Dyson DC50 Upper Duct Parts Diagram

Use this Dyson DC50 Upper Duct Parts Diagram will aide you in locating the right Dyson DC50 part for your upright vacuum cleaner. Just locate the letter of the product you need and match it to the list on the right hand side of the page. You can click on available products to view details on the product on the product page. Some products may NOT be in stock on our website but may be available if you call 1-866-927-4327.



Click Here to View Larger Image

Dyson DC50 Upper Duct Parts Diagram

Click Here to View Larger Image

(Click the Part Name Below to be taken Directly to the Part Detail Page)
A. Switch Button 964710-01
B. On/Off Switch 965145-01
C. Brush Bar Switch 965146-01
D. Spring 919901-81
E. Button Housing 965084-01
F. Internal Power Cord 965098-02
G. Screw 910703-01
H. Spring 965089-01
I. Handle Retract Catch
J. Screw 910703-02
K. Cable Protector 920914-01
L. Mini Cable Clip 923255-01
M. Power Cord 965092-02
N. Upper Chassis 965104-01
O. Lower Cable Winder 965079-01
P. Tool Holder 964709-01
Q. Screw 910703-01










Dyson DC50 Wand & Hose Parts Diagram

Use this Dyson DC50 Wand & Hose Parts Diagram to find the accessories you need for your Dyson DC50 upright vacuum cleaner. Just find the letter of the product you need and then find it in the right bar. If you click the view details button you will be directed to the product page. Easy as 1, 2, 3.Some products may NOT be in stock on our website but may be available if you call 1-866-927-4327.



Click Here to View Larger Image

Dyson DC50Wand and Hose Parts Diagram

Click Here to View Larger Image

(Click the Part Name Below to be taken Directly to the Part Detail Page)
A. Handle Cap 965096-01
B. Handle Cover 965097-01
C. Handle Assembly 965076-01
D. Combination Tool 965072-01
E. Stair Tool 965082-01
F. Wand 965083-01
G. Hose 965077-01

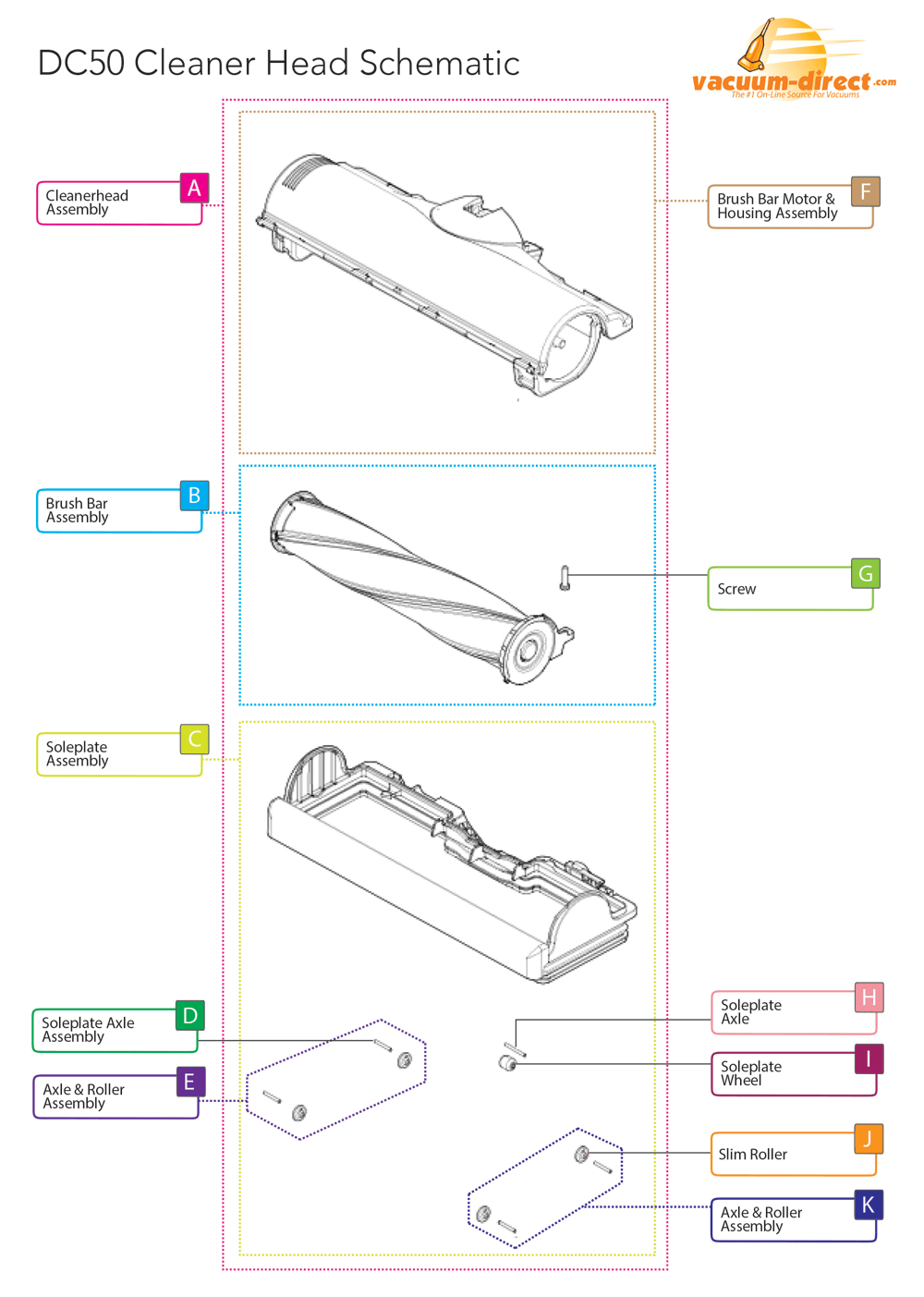

Dyson DC50 Cleaner Head Parts Diagram

Easily find the genuine Dyson parts you need for your Dyson DC50 vacuum cleaner. Just located the Dyson part in this Dyson DC50 Cleaner head schematic and click the view details button to be taken to the product page of the part you are interested in. Some products may NOT be in stock on our website but may be available if you call 1-866-927-4327.



Click Here to View Larger Image

Dyson DC50 Cleanerhead Parts Diagram

Click Here to View Larger Image

(Click the Part Name Below to be taken Directly to the Part Detail Page)
A. Cleanerhead Assembly 965071-02
B. Brush Bar Assembly 964705-01
C. Soleplate 964707-01
D. Soleplate Axle 911434-01
E. Axle & Rroller Assembly (NLA)
F. Brush Bar Motor & Housing 964714-01
G. Screw 914501-01
H. Soleplate Axle 911434-01
I. Soleplate Wheel 914892-01
J. Slim Roller 921816-01
K. Axle & Roller Assembly (NLA)








WHY YOU MAY NEED DYSON DC50 PARTS

When the need for maintenance arises, you want to be sure that you only ever use spare parts that are made to a high standard. Genuine Dyson DC50 replacement parts are made to the original manufacturer’s specifications. This means your genuine Dyson replacement parts are identical to the parts that shipped inside of your DC50 as it rolled off the assembly line. Never sacrifice this high standard.

Generic parts, on the other hand, cannot match the standard of the parts already in your DC50. Despite any claims made, generic parts are not made to the original manufacturer’s standards. Using generic parts will void your warranty. Only by using genuine Dyson replacement parts in your DC50 will you receive parts made to the original manufacturer’s standard and help you maintain your remaining warranty.

Accidents are unavoidable, but with genuine Dyson replacement parts, they are not insurmountable. Choose genuine Dyson parts for stress-free maintenance and you can get back to vacuuming like nothing ever happened!

WHY YOU SHOULD ORDER GENUINE DYSON DC50 PARTS FROM VACUUMDIRECT.COM

VacuumDirect.com is an authorized dealer of genuine Dyson replacement parts. We work with Dyson to get genuine Dyson parts directly into your hands. VacuumDirect.com sells only genuine Dyson parts for the DC50, because those are the parts that are most likely to resolve your problem.

Those who are in the know realize that the DC50 is best serviced using only genuine Dyson parts. Those individuals will tell you that VacuumDirect.com offers quick shipping for genuine Dyson parts to any location in the United States. See for yourself why those who order genuine Dyson replacement parts from VacuumDirect.com are still happily vacuuming away with their Dyson DC50s.

If you have any questions about the ordering process or questions concerning Dyson DC50 replacement parts, feel free to call Vacuum Direct toll-free at 1-866-927-4327. Our team of customer service representatives are available from 9 am to 5 pm Eastern, Monday thru Friday.
